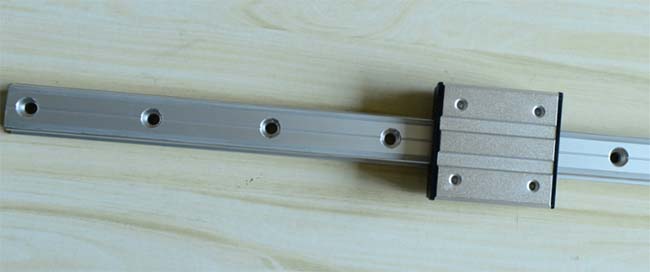

LSGD series Rails Character:

● LSGD series Rails are made from high quality and precision aluminum extrusions with hardened shafting.the block will work on the outsider of rail.

● LSGD series offers 2, 4,6,8 roller blocks in each size.You can choose different blocks according to your working loading requirement.

●The function and shape of LSGD rails and block is similar with OSG series.

but the block is better than OSG series with good tightness.

●Double Row Angular Contact Bearings are allowing for accurate travel: 0.02mm over 6 meters

●Rugged Plastic End Caps will protect against dust and debris for good performance.

LSGD series Rails advantage:

1.Smooth Running 2. Quiet Running 3. Lightweight Aluminum Extrusion Design 4. Adjustable Preload 5.Rugged Plastic End Caps Clear Shafting of Debris 6. High Speeds - Up to 10 Meters Per Second 7. Easy Installation 8. Low Cost Precision Performance
