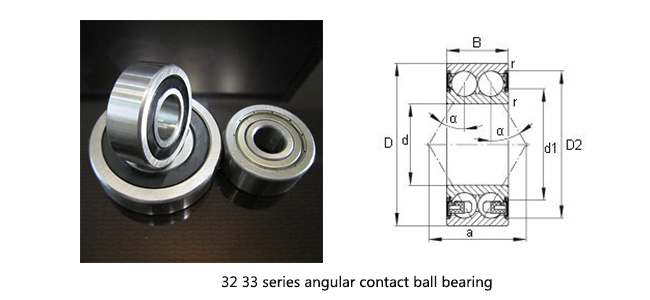

ProductsYour Position : Home > 32 33 series angular contact ball bearing



Bearing No. Bearing Dimensions(mm) Load Rating Weight
ANDING d D B a D2 d1 α rmin Cr(N) Cor(N) (g)
3200.2RS 3200.2Z 10 30 14 15 26.7 14.3 30° 0.6 7800 4550 51
3201.2RS 3201.2Z 12 32 15.9 17 28.5 17.5 30° 0.6 10600 5850 54
3202.2RS 3202.2Z 15 35 15.9 20.73 31.2 21 30° 0.6 12600 7400 64
3203.2RS 3203.2Z 17 40 17.5 23.5 36.1 24.5 30° 0.6 15500 9500 93
3204.2RS 3204.2Z 20 47 20.6 27.87 42.3 29.3 30° 1 20800 13200 150
3205.2RS 3205.2Z 25 52 20.6 30.76 47.7 34.3 30° 1 22200 15500 171
3206.2RS 3206.2Z 30 62 23.8 36.38 55.9 40.4 30° 1 31000 22200 285
3207.2RS 3207.2Z 35 72 27 42.5 65.4 47 30° 1.1 41000 30000 432
3208.2RS 3208.2Z 40 80 30.2 47.84 72.6 52.9 30° 1.1 50000 38000 578
3209.2RS 3209.2Z 45 85 30.2 50.73 78.1 57.8 30° 1.1 50000 39000 621
3210.2RS 3210.2Z 50 90 30.2 53.42 83 62.9 30° 1.1 53000 44000 668
3211.2RS 3211.2Z 55 100 33.3 58.4 90.8 69.2 30° 1.5 61000 51000 933
3212.2RS 3212.2Z 60 110 36.5 65 100.6 76.6 30° 1.5 74000 64000 1250
3213.2RS 3213.2Z 65 120 38.1 70.65 110.2 85.3 30° 1.5 86000 77000 1600
3302.2RS 3302.2Z 15 42 19 24.77 37.9 25.8 30° 1 17200 10600 122
3303.2RS 3303.2Z 17 47 22.2 27.51 41.2 27.2 30° 1 22500 13100 176
3304.2RS 3304.2Z 20 52 22.2 30.39 46.2 32 30° 1.1 24700 15900 215
3305.2RS 3305.2Z 25 62 25.4 35.42 53.8 37.7 30° 1.1 31500 21000 347
3306.2RS 3306.2Z 30 72 30.2 41.85 63.5 44.4 30° 1.1 43000 29500 540
3307.2RS 3307.2Z 35 80 34.9 47.99 72 49.7 30° 1.5 55000 36500 704
3308.2RS 3308.2Z 40 90 36.5 53.11 80 56.9 30° 1.5 66000 47500 968
3309.2RS 3309.2Z 45 100 39.7 57.8 87.4 63.3 30° 1.5 72000 54000 1314
3310.2RS 3310.2Z 50 110 44.4 64.22 96.8 69 30 2 93000 70000 1748
3311.2RS 3311.2Z 55 120 49.2 71.4 106.8 76.4 30° 2 116000 88000 2264
