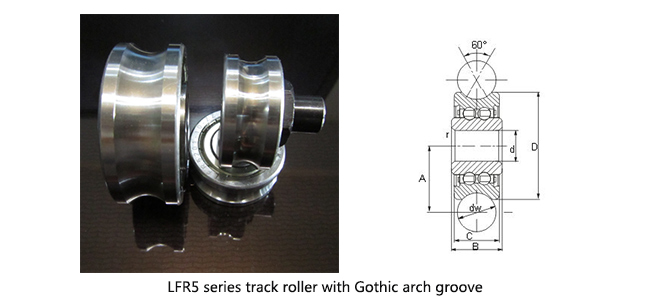

● LFR5 series track rollers are the most widely-use and economy product as the linear motion track rollers, and they can suit with the cylindrical rails.
● There are two contact points between the roller and rail, so contact function is favorable.the friction resistance is low and the load is in equality .
●The track rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.
●The track rollers are made of high-quality bearing steel(100Cr6), processed by heat treatment and precision grinding, and are filled with a long life, high-grade and multi-purposes grease. The track rollers fix the metal shield (Suffix:KDD) or rubble seal (Suffix:NPP) to prevent the dust. ANDING also can provide matched concentric or eccentric bolt. Some track rollers can be made in stainless steel.
| Roller No. | Roller Dimensions(mm) | Load Rating | Weight | ||||||||
| ANDING | GERMANY | dw | d | D | C | B | A | rmin | Cr(N) | Cor(N) | (g) |
| LFR50/4KDD | LFR50/4-2Z | 5 | 4 | 13 | 6 | 7 | 8.04 | 0.2 | 1050 | 850 | 7 |
| LFR50/4NPP | LFR50/4-2RS | 5 | 4 | 13 | 6 | 7 | 8.04 | 0.2 | 1050 | 850 | 7 |
| LFR50/5-4KDD | LFR50/5-4-2Z | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 | 1510 | 860 | 9 |
| LFR50/5-4NPP | LFR50/5-4-2RS | 4 | 5 | 16 | 7 | 8 | 9 | 0.2 | 1510 | 860 | 9 |
| LFR50/5KDD | LFR50/5-6-2Z | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 | 1640 | 900 | 10 |
| LFR50/5NPP | LFR50/5-6-2RS | 6 | 5 | 17 | 7 | 8 | 10.5 | 0.2 | 1640 | 900 | 10 |
| LFR50/8KDD | LFR50/8-6-2Z | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 | 4050 | 2280 | 24 |
| LFR50/8NPP | LFR50/8-6-2RS | 6 | 8 | 24 | 11 | 11 | 14 | 0.3 | 4050 | 2280 | 24 |
| LFR50/8-8KDD | LFR50/8-8-2Z | 8 | 8 | 24 | 11 | 11 | 14.75 | 0.3 | 4050 | 2280 | 24 |
| LFR50/8-8NPP | LFR50/8-8-2RS | 8 | 8 | 24 | 11 | 11 | 14.75 | 0.3 | 4050 | 2280 | 24 |
| LFR5200KDD | LFR5200-2Z | 8 | 10 | 32 | 14 | 14 | 18 | 0.6 | 5600 | 3600 | 50 |
| LFR5200NPP | LFR5200-2RS | 8 | 10 | 32 | 14 | 14 | 18 | 0.6 | 5600 | 3600 | 50 |
| LFR5201KDD | LFR5201-10-2Z | 10 | 12 | 35 | 15.9 | 15.9 | 20.65 | 0.6 | 8350 | 5000 | 75 |
| LFR5201NPP | LFR5201-10-2RS | 10 | 12 | 35 | 15.9 | 15.9 | 20.65 | 0.6 | 8350 | 5000 | 75 |
| LFR5201-12KDD | LFR5201-12-2Z | 12 | 12 | 35 | 15.9 | 15.9 | 21.75 | 0.6 | 8300 | 5000 | 75 |
| LFR5201-12NPP | LFR5201-12-2RS | 12 | 12 | 35 | 15.9 | 15.9 | 21.75 | 0.6 | 8300 | 5000 | 75 |
| LFR5204-16KDD | LFR5204-16-2Z | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 1 | 15300 | 10100 | 230 |
| LFR5204-16NPP | LFR5204-16-2RS | 16 | 20 | 52 | 20.6 | 22.6 | 31.5 | 1 | 15300 | 10100 | 230 |
| LFR5206-20KDD | LFR5206-20-2Z | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 1 | 23600 | 16000 | 435 |
| LFR5206-20NPP | LFR5206-20-2RS | 20 | 25 | 72 | 23.8 | 25.8 | 41 | 1 | 23600 | 16000 | 435 |
| LFR5206-25KDD | LFR5206-25-2Z | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 1 | 22700 | 16100 | 425 |
| LFR5206-25NPP | LFR5206-25-2RS | 25 | 25 | 72 | 23.8 | 25.8 | 43.5 | 1 | 22700 | 16100 | 425 |
| LFR5207-30KDD | LFR5207-30-2Z | 30 | 30 | 80 | 27 | 29 | 51 | 1 | 28000 | 20500 | 660 |
| LFR5207-30NPP | LFR5207-30-2RS | 30 | 30 | 80 | 27 | 29 | 51 | 1 | 28000 | 20500 | 660 |
| LFR5208-40KDD | LFR5208-40-2Z | 40 | 40 | 98 | 36 | 38 | 62.5 | 1.1 | 38500 | 29000 | 1360 |
| LFR5208-40NPP | LFR5208-40-2RS | 40 | 40 | 98 | 36 | 38 | 62.5 | 1.1 | 38500 | 29000 | 1360 |
| LFR5301KDD | LFR5301-10-2Z | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13200 | 7700 | 120 |
| LFR5301NPP | LFR5301-10-2RS | 10 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13200 | 7700 | 120 |
| LFR5301-20KDD | LFR5301-20-2Z | 20 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13200 | 7700 | 125 |
| LFR5301-20NPP | LFR5301-20-2RS | 20 | 12 | 42 | 19 | 19 | 24 | 0.6 | 13200 | 7700 | 125 |
| LFR5302KDD | LFR5302-10-2Z | 10 | 15 | 47 | 19 | 19 | 26.65 | 1 | 13900 | 9000 | 163 |
| LFR5302NPP | LFR5302-10-2RS | 10 | 15 | 47 | 19 | 19 | 26.65 | 1 | 13900 | 9000 | 163 |
| LFR5308-50KDD | LFR5308-50-2Z | 50 | 40 | 110 | 44 | 46 | 72.5 | 1.1 | 54000 | 40500 | 1400 |
| LFR5308-50NPP | LFR5308-50-2RS | 50 | 40 | 110 | 44 | 46 | 72.5 | 1.1 | 54000 | 40500 | 1400 |
