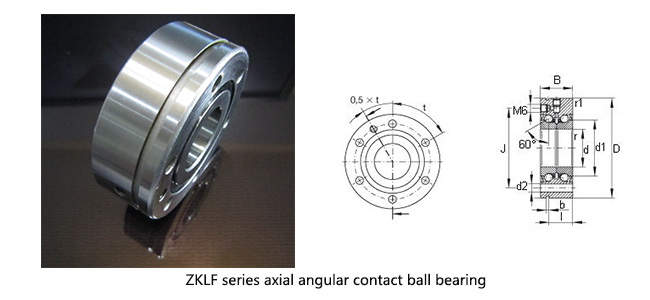

●The bearing consists of a single-piece outer ring, a two-piece semi-inner ring, balls, cage assemblies and seals.
●The bearing is with a 60°contact angle in opposite direction and can support axial loads from both directions as well as radial loads. The bearing outer ring is with flange ,that can be used on screw drives etc precision mounting application.
●The bearing is preloaded by a precision locknut when assembled and protected from contamination by lip seals or gap seals on both sides
●The bearing is suitable for operating temperatures from -30°C to +120°C (determined by the grease, sealing ring material and the plastic cages ).
| Bearing No. | Bearing Dimensions(mm) | Load Rating | Weight | |||||||||||
| ANDING | d | D | B | b | d1 | d2 | I | J | r1min | rmin | t |
Ca (N) |
Coa(N) | (g) |
| ZKLF1255.2RS | 12 | 55 | 25 | 3 | 25 | 6.5 | 17 | 42 | 0.6 | 0.3 | 3×120° | 17000 | 24700 | 370 |
| ZKLF1255.2Z | 12 | 55 | 25 | 3 | 25 | 6.5 | 17 | 42 | 0.6 | 0.3 | 3×120° | 17000 | 24700 | 370 |
| ZKLF1255.2RS PE | 12 | 55 | 25 | 3 | 25 | 6.8 | 17 | 42 | 0.6 | 0.3 | 3×120° | 17000 | 24700 | 370 |
| ZKLF1560.2RS | 15 | 60 | 25 | 3 | 28 | 6.5 | 17 | 46 | 0.6 | 0.3 | 3×120° | 17900 | 28000 | 430 |
| ZKLF1560.2Z | 15 | 60 | 25 | 3 | 28 | 6.5 | 17 | 46 | 0.6 | 0.3 | 3×120° | 17900 | 28000 | 430 |
| ZKLF1560.2RS PE | 15 | 60 | 25 | 3 | 28 | 6.8 | 17 | 46 | 0.6 | 0.3 | 3×120° | 17900 | 28000 | 430 |
| ZKLF1762.2RS | 17 | 62 | 25 | 3 | 30 | 6.5 | 17 | 48 | 0.6 | 0.3 | 3×120° | 18800 | 31000 | 450 |
| ZKLF1762.2Z | 17 | 62 | 25 | 3 | 30 | 6.5 | 17 | 48 | 0.6 | 0.3 | 3×120° | 18800 | 31000 | 450 |
| ZKLF1762.2RS PE | 17 | 62 | 25 | 3 | 30 | 6.8 | 17 | 48 | 0.6 | 0.3 | 3×120° | 18800 | 31000 | 450 |
| ZKLF2068.2RS | 20 | 68 | 28 | 3 | 34.5 | 6.5 | 19 | 53 | 0.6 | 0.3 | 4×90° | 26000 | 47000 | 610 |
| ZKLF2068.2Z | 20 | 68 | 28 | 3 | 34.5 | 6.5 | 19 | 53 | 0.6 | 0.3 | 4×90° | 26000 | 47000 | 640 |
| ZKLF2068.2RS PE | 20 | 68 | 28 | 3 | 34.5 | 6.8 | 19 | 53 | 0.6 | 0.3 | 4×90° | 26000 | 47000 | 640 |
| ZKLF2575.2RS | 25 | 75 | 28 | 3 | 40.5 | 6.5 | 19 | 58 | 0.6 | 0.3 | 4×90° | 27500 | 55000 | 720 |
| ZKLF2575.2Z | 25 | 75 | 28 | 3 | 40.5 | 6.5 | 19 | 58 | 0.6 | 0.3 | 4×90° | 27500 | 55000 | 720 |
| ZKLF2575.2RS PE | 25 | 75 | 28 | 3 | 40.5 | 6.8 | 19 | 58 | 0.6 | 0.3 | 4×90° | 27500 | 55000 | 720 |
| ZKLF3080.2RS | 30 | 80 | 28 | 3 | 45.5 | 6.5 | 19 | 63 | 0.6 | 0.3 | 6×60° | 29000 | 64000 | 780 |
| ZKLF3080.2Z | 30 | 80 | 28 | 3 | 45.5 | 6.5 | 19 | 63 | 0.6 | 0.3 | 6×60° | 29000 | 64000 | 780 |
| ZKLF3080.2RS PE | 30 | 80 | 28 | 3 | 45.5 | 6.8 | 19 | 63 | 0.6 | 0.3 | 6×60° | 29000 | 64000 | 780 |
| ZKLF3590.2RS | 35 | 90 | 34 | 3 | 52 | 8.5 | 25 | 75 | 0.6 | 0.3 | 4×90° | 41000 | 89000 | 1130 |
| ZKLF3590.2Z | 35 | 90 | 34 | 3 | 52 | 8.5 | 25 | 75 | 0.6 | 0.3 | 4×90° | 41000 | 89000 | 1130 |
| ZKLF3590.2RS PE | 35 | 90 | 34 | 3 | 52 | 8.8 | 25 | 75 | 0.6 | 0.3 | 4×90° | 41000 | 89000 | 1130 |
| ZKLF40100.2RS | 40 | 100 | 34 | 3 | 58 | 8.5 | 25 | 80 | 0.6 | 0.3 | 4×90° | 43000 | 101000 | 1460 |
| ZKLF40100.2Z | 40 | 100 | 34 | 3 | 58 | 8.5 | 25 | 80 | 0.6 | 0.3 | 4×90° | 43000 | 101000 | 1460 |
| ZKLF40100.2RS PE | 40 | 100 | 34 | 3 | 58 | 8.8 | 25 | 80 | 0.6 | 0.3 | 4×90° | 43000 | 101000 | 1460 |
| ZKLF50115.2RS | 50 | 115 | 34 | 3 | 72 | 8.5 | 25 | 94 | 0.6 | 0.3 | 6×60° | 46500 | 126000 | 1860 |
| ZKLF50115.2Z | 50 | 115 | 34 | 3 | 72 | 8.5 | 25 | 94 | 0.6 | 0.3 | 6×60° | 46500 | 126000 | 1860 |
| ZKLF50115.2RS PE | 50 | 115 | 34 | 3 | 72 | 8.8 | 25 | 94 | 0.6 | 0.3 | 6×60° | 46500 | 126000 | 1860 |
| ZKLF50140.2RS | 50 | 140 | 54 | 3 | 80 | 11 | 45 | 113 | 0.6 | 0.6 | 12×30° | 11300 | 250000 | 4700 |
| ZKLF50140.2Z | 50 | 140 | 54 | 3 | 80 | 11 | 45 | 113 | 0.6 | 0.6 | 12×30 | 11300 | 250000 | 4700 |
| ZKLF60145.2Z | 60 | 145 | 45 | 3 | 50 | 8.5 | 35 | 120 | 0.6 | 0.6 | 6×60° | 84000 | 214000 | 4300 |
| ZKLF70155.2Z | 70 | 155 | 45 | 3 | 59 | 8.5 | 35 | 130 | 0.6 | 0.6 | 8×45° | 88000 | 241000 | 4900 |
| ZKLF80165.2Z | 80 | 165 | 45 | 3 | 59 | 8.5 | 45 | 140 | 0.6 | 0.6 | 8×45° | 91000 | 265000 | 5300 |
| ZKLF90190.2Z | 90 | 190 | 55 | 3 | 64 | 10.5 | 45 | 165 | 0.6 | 0.6 | 8×45° | 135000 | 395000 | 8700 |
| ZKLF100200.2Z | 100 | 200 | 55 | 3 | 64 | 10.5 | 45 | 175 | 0.6 | 0.6 | 8×45° | 140000 | 435000 | 9300 |
