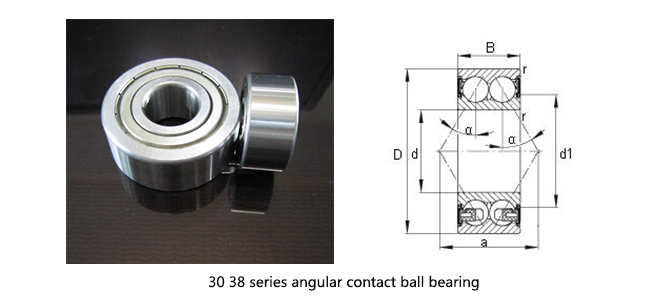

ProductsYour Position : Home > 30 38 series angular contact ball bearing



Bearing No. Bearing Dimensions(mm) Load Rating Weight
ANDING d D B a d1 α rmin Cr(N) Cor(N) (g)
30/5.2RS 30/5.2Z 5 14 7 6.3 7.5 25° 0.2 1810 950 8
30/6.2RS 30/6.2Z 6 17 9 8.8 8.3 25° 0.3 3100 1420 10
30/7.2RS 30/7.2Z 7 19 10 10 9 25° 0.3 3650 1700 12
30/8.2RS 30/8.2Z 8 22 11 10.7 10.5 25° 0.3 5200 2650 20
3000.2RS. 3000.2Z 10 26 12 12.3 13.5 25° 0.3 5700 3250 22
3001.2RS 3001.2Z 12 28 12 13 15.5 25° 0.3 6200 3750 25
3002.2RS 3002.2Z 15 32 13 14.8 20.4 25° 0.3 8600 5400 36
3003.2RS 3003.2Z 17 35 14 15.5 21.6 25° 0.3 9200 6200 42
3004.2RS 3004.2Z 20 42 16 19.1 25.2 25° 0.6 14500 9600 80
3005.2RS 3005.2Z 25 47 16 21.2 29.8 25° 0.6 15500 11100 100
3006.2RS 3006.2Z 30 55 19 24.8 35.6 25° 1 20300 15600 160
3007.2RS 3007.2Z 35 62 20 27.8 41.7 25° 1 24500 19400 200
3008.2RS 3008.2Z 40 68 21 30.8 46.7 25° 1 25500 21700 250
3800.2RS 3800.2Z 10 19 7 8.1 13 25° 0.3 2120 1400 8
3801.2RS 3801.2Z 12 21 7 8.9 15 25° 0.3 2190 1550 8
3802.2RS 3802.2Z 15 24 7 10.1 18 25° 0.3 2430 1960 9
3803.2RS 3803.2Z 17 26 7 10.9 20 25° 0.3 2480 2080 15
3804.2RS 3804.2Z 20 32 10 14.3 24.3 25° 0.3 5800 4850 20
3805.2RS 3805.2Z 25 37 10 15.9 28.3 25° 0.3 6000 5600 25
3806.2RS 3806.2Z 30 42 10 18.1 32.8 25° 0.3 6300 6100 30
3807.2RS 3807.2Z 35 47 10 20 38.5 25° 0.3 6700 7000 35
3808.2RS 3808.2Z 40 52 10 22.4 43.4 25° 0.3 7000 7800 40
3809.2RS 3809.2Z 45 58 10 24.2 48.6 25° 0.3 7200 8300 53
3810.2RS 3810.2Z 50 65 12 27.1 55.1 25° 0.3 8700 10400 70
3811.2RS 3811.2Z 55 72 13 30.7 61.9 25° 0.3 12100 15700 90
3812.2RS 3812.2Z 60 78 14 33.2 65.9 25° 0.3 14500 17500 140
3814.2RS 3814.2Z 70 90 15 38.5 76.5 25° 0.6 19200 23800 190
3816.2RS 3816.2Z 80 100 15 42.2 85.5 25° 0.6 19600 25500 230
