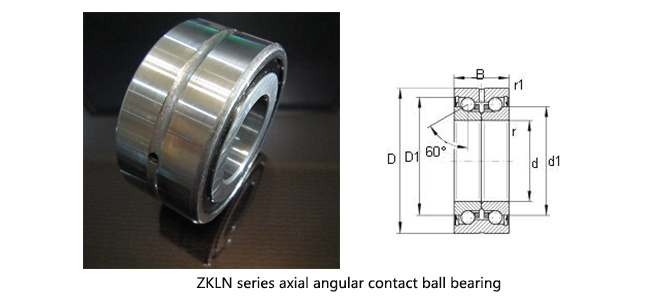

●The bearing consists of a single-piece outer ring, a two-pieces semi-inner ring, ball and cage assemblies and seals.
●The bearing is double direction angular contact ball bearings with a 60° contact angle in an O shape arrangement and can support axial loads from both directions as well as radial loads, that can be used with screw drives etc precision mounting application.
●The bearing is preloaded by a precision locknut when assembly and protected from contamination by lip seals or gap seals on both sides.
●The bearing is suitable for operating temperatures from -30°C to +120°C (determined by the grease, sealing ring and the plastic cages material).
| Bearing No. | Bearing Dimensions(mm) | Load Rating | Weight | |||||||
| ANDING | d | D | B | d1 | D1 | r1min | rmin | Ca(N) | Coa(N) | (g) |
| ZKLN0619.2Z | 6 | 19 | 12 | 12 | 16.5 | 0.3 | 0.3 | 4900 | 6100 | 20 |
| ZKLN0624.2RS | 6 | 24 | 15 | 14 | 19.5 | 0.6 | 0.3 | 6900 | 8500 | 30 |
| ZKLN0624.2RS PE | 6 | 24 | 15 | 14 | 19.5 | 0.6 | 0.3 | 6900 | 8500 | 30 |
| ZKLN0624.2Z | 6 | 24 | 15 | 14 | 19.5 | 0.6 | 0.3 | 6900 | 8500 | 30 |
| ZKLN0832.2RS | 8 | 32 | 20 | 19 | 26.5 | 0.6 | 0.3 | 12500 | 16300 | 90 |
| ZKLN0832.2Z | 8 | 32 | 20 | 19 | 26.5 | 0.6 | 0.3 | 12500 | 16300 | 90 |
| ZKLN1034.2RS | 10 | 34 | 20 | 21 | 28.5 | 0.6 | 0.3 | 13400 | 18800 | 100 |
| ZKLN1034.2RS PE | 10 | 34 | 20 | 21 | 28.5 | 0.6 | 0.3 | 13400 | 18800 | 100 |
| ZKLN1034.2Z | 10 | 34 | 20 | 21 | 28.5 | 0.6 | 0.3 | 13400 | 18800 | 100 |
| ZKLN1242.2RS | 12 | 42 | 25 | 25 | 33.5 | 0.6 | 0.3 | 17000 | 24700 | 200 |
| ZKLN1242.2RS PE | 12 | 42 | 25 | 25 | 33.5 | 0.6 | 0.3 | 17000 | 24700 | 200 |
| ZKLN1242.2Z | 12 | 42 | 25 | 25 | 33.5 | 0.6 | 0.3 | 17000 | 24700 | 200 |
| ZKLN1545.2RS | 15 | 45 | 25 | 28 | 36 | 0.6 | 0.3 | 17900 | 28000 | 210 |
| ZKLN1545.2RS PE | 15 | 45 | 25 | 28 | 36 | 0.6 | 0.3 | 17900 | 28000 | 210 |
| ZKLN1545.2Z | 15 | 45 | 25 | 28 | 36 | 0.6 | 0.3 | 17900 | 28000 | 210 |
| ZKLN1747.2RS | 17 | 47 | 25 | 30 | 38 | 0.6 | 0.3 | 18800 | 31000 | 220 |
| ZKLN1747.2RS PE | 17 | 47 | 25 | 30 | 38 | 0.6 | 0.3 | 18800 | 31000 | 220 |
| ZKLN1747.2Z | 17 | 47 | 25 | 30 | 38 | 0.6 | 0.3 | 18800 | 31000 | 220 |
| ZKLN2052.2RS | 20 | 52 | 28 | 34.5 | 44 | 0.6 | 0.3 | 26000 | 47000 | 310 |
| ZKLN2052.2RS PE | 20 | 52 | 28 | 34.5 | 44 | 0.6 | 0.3 | 26000 | 47000 | 310 |
| ZKLN2052.2Z | 20 | 52 | 28 | 34.5 | 44 | 0.6 | 0.3 | 26000 | 47000 | 310 |
| ZKLN2557.2RS | 25 | 57 | 28 | 40.5 | 49 | 0.6 | 0.3 | 27500 | 55000 | 340 |
| ZKLN2557.2RS PE | 25 | 57 | 28 | 40.5 | 49 | 0.6 | 0.3 | 27500 | 55000 | 340 |
| ZKLN2557.2Z | 25 | 57 | 28 | 40.5 | 49 | 0.6 | 0.3 | 27500 | 55000 | 340 |
| ZKLN3062.2RS | 30 | 62 | 28 | 45.5 | 54 | 0.6 | 0.3 | 29000 | 64000 | 390 |
| ZKLN3062.2RS PE | 30 | 62 | 28 | 45.5 | 54 | 0.6 | 0.3 | 29000 | 64000 | 390 |
| ZKLN3062.2Z | 30 | 62 | 28 | 45.5 | 54 | 0.6 | 0.3 | 29000 | 64000 | 390 |
| ZKLN3572.2RS | 35 | 72 | 34 | 52 | 63 | 0.6 | 0.3 | 41000 | 89000 | 510 |
| ZKLN3572.2RS PE | 35 | 72 | 34 | 52 | 63 | 0.6 | 0.3 | 41000 | 89000 | 510 |
| ZKLN3572.2Z | 35 | 72 | 34 | 52 | 63 | 0.6 | 0.3 | 41000 | 89000 | 510 |
| ZKLN4075.2RS | 40 | 75 | 34 | 58 | 68 | 0.6 | 0.3 | 43000 | 101000 | 610 |
| ZKLN4075.2Z | 40 | 75 | 34 | 58 | 68 | 0.6 | 0.3 | 43000 | 101000 | 610 |
| ZKLN5090.2RS | 50 | 90 | 34 | 72 | 82 | 0.6 | 0.3 | 46500 | 126000 | 880 |
| ZKLN5090.2RS PE | 50 | 90 | 34 | 72 | 82 | 0.6 | 0.3 | 46500 | 126000 | 880 |
| ZKLN5090.2Z | 50 | 90 | 34 | 72 | 82 | 0.6 | 0.3 | 46500 | 126000 | 880 |
