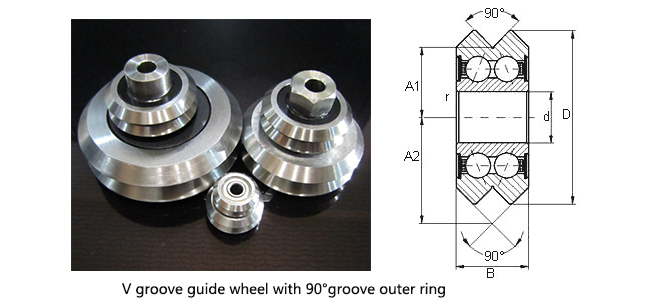

●V groove guide wheel consists of both an internal and external 90 degree vee angle. The internal or external side face can match separately with the concave or convex rails that have a 90 degree vee angle, and the internal side face also can match well with the round rails.
●V groove guide wheel is made with a double row angular contact bearing structure for excellent load capability and long life.
●V groove guide wheel is made of the 52100 (Gcr15) and stainless steel (440C) and processed by heat treatment and precision grinding. The wheel is filled with a long life, high-grade and multi-purposes grease. The wheel is with the metal shield or rubber seal (suffix X) to prevent the dust. ANDING bearing also can provide the matched concentric or eccentric bushings in stainless steel or carbon steel.
●V groove guide wheel is the main components of the linear motion system and can be widely used in the industrial robot, cutting machines, sliding rail, production flow line and so on.
Bearing No. | Bearing Dimensions(mm) | Load Rating | Weight | ||||||
ANDING | d | D | B | A1 | A2 | rmin | Cr(N) | Cor(N) | (g) |
W0 | 4 | 14.84 | 6.35 | 5.94 | 9.12 | 0.3 | 1000 | 500 | 5 |
W0X | 4 | 14.84 | 6.35 | 5.94 | 9.12 | 0.3 | 1000 | 500 | 5 |
W1 | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2200 | 1000 | 11 |
W1X | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2200 | 1000 | 11 |
W2 | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4900 | 2500 | 38 |
W2X | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4900 | 2500 | 38 |
W3 | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9400 | 4900 | 130 |
W3X | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9400 | 4900 | 130 |
W4 | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14800 | 8200 | 280 |
W4X | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14800 | 8200 | 280 |
W4XL | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 20600 | 14300 | 580 |
W4XXL | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 20600 | 14300 | 580 |
W1SSX | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2200 | 1000 | 11 |
W2SSX | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4900 | 2500 | 38 |
W3SSX | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9400 | 4900 | 130 |
W4SSX | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14800 | 8200 | 280 |
